Eco-friendly Block
We will stand at the forefront of environmental conservation with our technologies blending harmoniously with the nature.
Evergreen L-type side wall block
This product developed by our company is an innovative precast product that promotes conservation of natural ecosystem and stability of structures by overcoming the limit of existing waterway products that have only drainage and water supply functions.
Features
1. A product maintaining existing waterway functions and combining ecological functions
- This product facilitates the movement of amphibians and reptiles with ecological aisles to protecting the ecosystem. With the drainage works creating favorable vegetation conditions, this product creates an environment-friendly space where animals and plants co-exist.
2. Maximization of drainage function
- Adopting our company’s patented perforated filter made of PVC material, this product improved the efficiency of drainage function and creates favorable vegetation conditions.
3. Improved structural stability
- It is a standardized factory product with differential settlement prevention bump, and its double reinforcement of bottom slab prevents overturning.
4. Higher quality
- Flexural strength was increased to prevent breakage caused by external pressure. In addition, resistance against freeze and burst in cold winter was also increased.

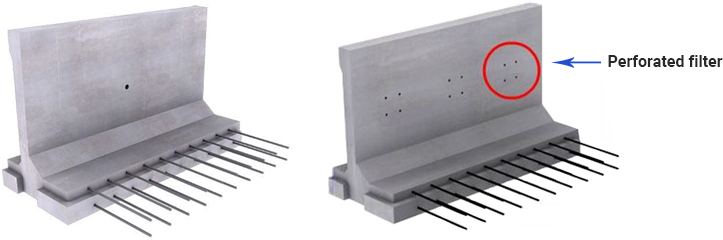

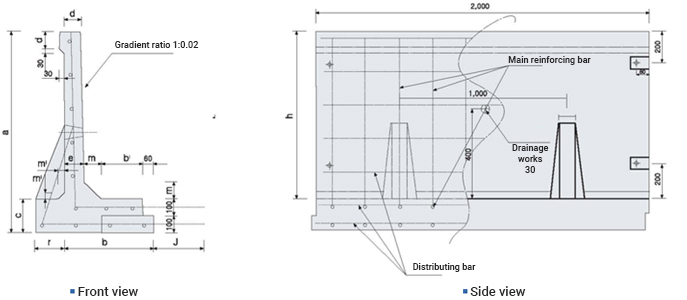

Detail drawing of block
Detail drawing

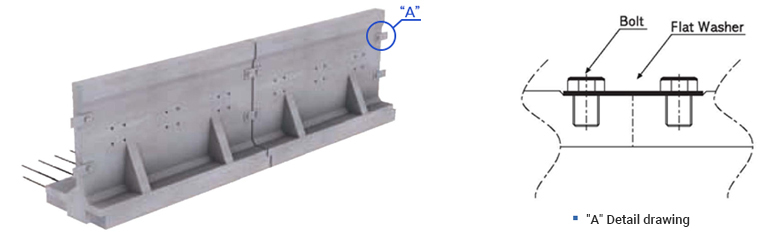

Detail drawing of connection part

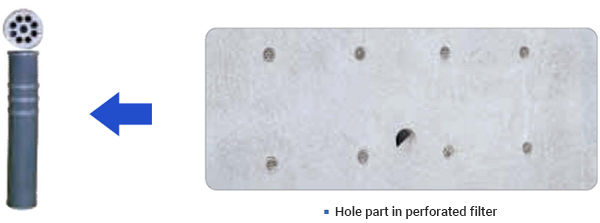

Perforated filter
Specification table
Unit:mm
Designation | a | b | b´ | c | d | e | j | m | m´ | r | h | Front of wall | Rear of wall | Bottom plate slab | Product Reference Weight | |||
Vertical | Horizontal | Vertical | Horizontal | Vertical | Vertical | |||||||||||||
800 | 1000 | 450 | 180 | 200 | 120 | 150 | 200 | 60 | 40 | 150 | 350 | D10@20.0 | D10@20.0 | D13@20.0 | D10@20.0 | D13@20.0 | D13@20.0 | 1,255kg |
1000 | 1200 | 550 | 240 | 200 | 120 | 150 | 200 | 100 | 40 | 180 | 455 | D10@20.0 | D10@20.0 | D13@20.0 | D10@20.0 | D13@20.0 | D13@20.0 | 1,440kg |
1200 | 1400 | 550 | 240 | 200 | 120 | 150 | 200 | 100 | 60 | 180 | 590 | D10@20.0 | D10@20.0 | D13@20.0 | D10@20.0 | D13@20.0 | D13@20.0 | 1,543kg |
1500 | 1700 | 670 | 320 | 200 | 140 | 170 | 200 | 120 | 80 | 200 | 820 | D13@20.0 | D10@20.0 | D16@20.0 | D13@20.0 | D16@20.0 | D16@20.0 | 1,993kg |
1800 | 2000 | 790 | 390 | 200 | 160 | 190 | 200 | 150 | 100 | 200 | 820 | D13@20.0 | D10@20.0 | D16@20.0 | D13@20.0 | D16@20.0 | D16@20.0 | 2,537kg |
2000 | 2200 | 980 | 530 | 200 | 210 | 240 | 200 | 150 | 100 | 220 | 920 | D13@20.0 | D10@20.0 | D16@20.0 | D13@20.0 | D16@20.0 | D16@20.0 | 3,342kg |
