PC Structures for Waterway
We are pioneering new areas of nature-friendly PC products with excellent stability and constructability.

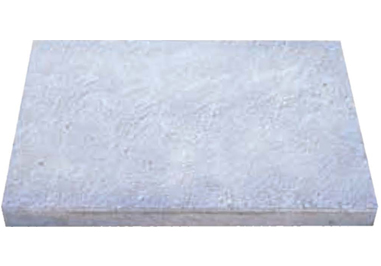

Cover of waterway pipe
It is the cover suitable for bench flume type Ⅲ products and is often used as cover for sidewalk and waterway crosswalk.
Detail drawing of cover

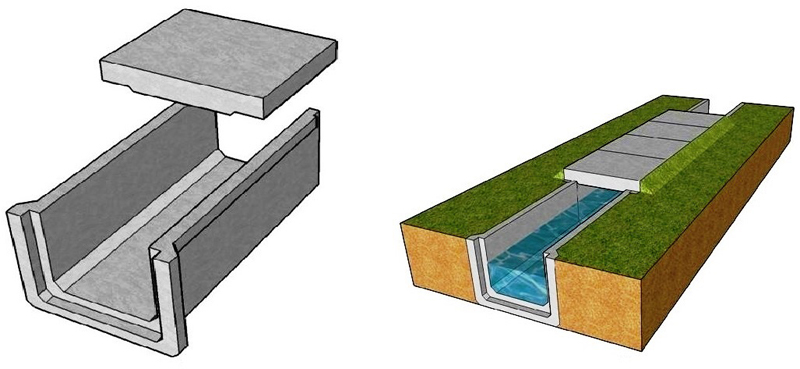

Example drawing of construction

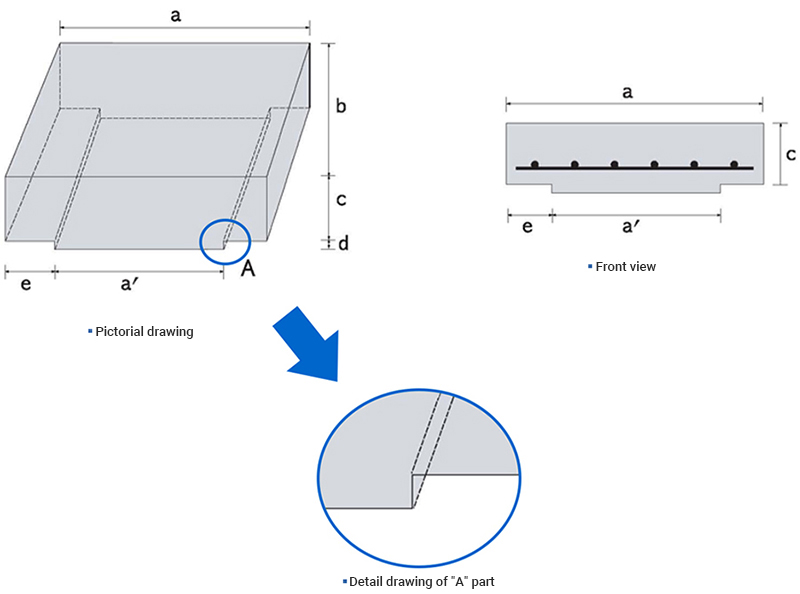

Detail drawing
Specification table
Unit:mm
| Designation | a | a´ | b | c | d | e |
| W-300 | 450 | 285 | 1000 | 75 | 5 | 82.5 |
| W-400 | 560 | 390 | 1000 | 85 | 5 | 85.0 |
| W-500 | 680 | 490 | 1000 | 85 | 5 | 95.0 |
| W-600 | 790 | 590 | 1000 | 95 | 5 | 100.0 |
| W-700 | 890 | 680 | 1000 | 110 | 5 | 100.0 |
| W-800 | 1000 | 790 | 1000 | 115 | 5 | 100.0 |
| W-900 | 1100 | 890 | 1000 | 115 | 5 | 105.0 |
| W-1000 | 1210 | 990 | 1000 | 125 | 5 | 110.0 |

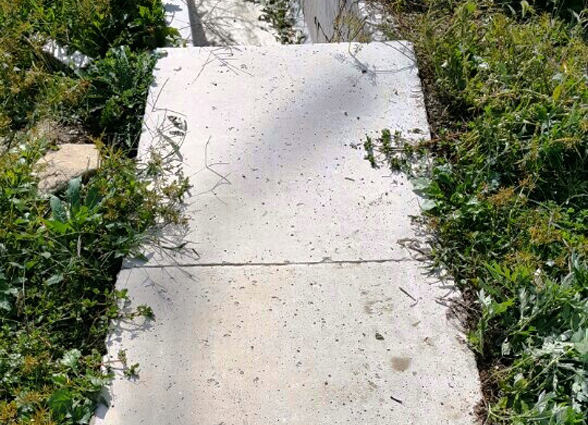

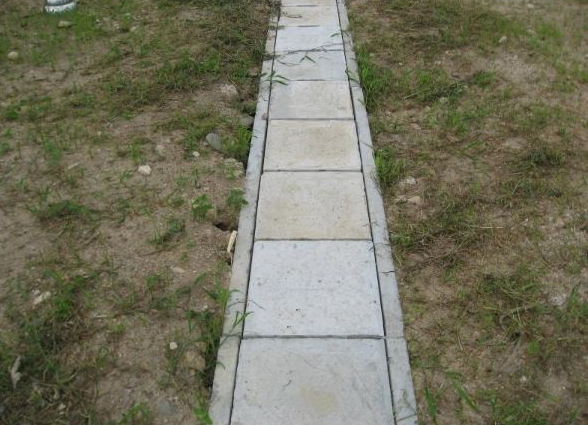

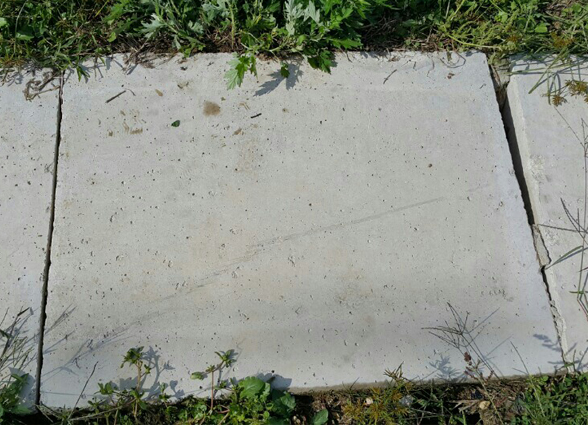

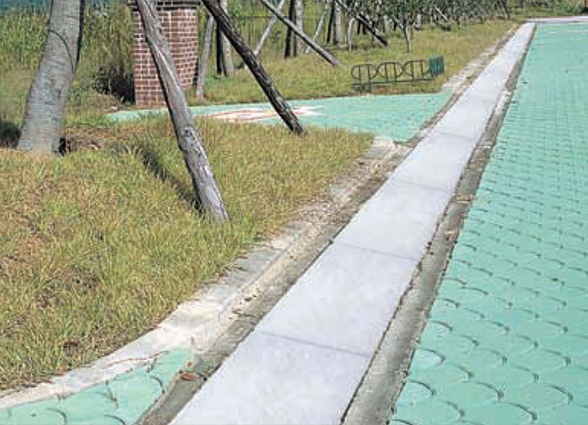

Case of Application
